To most car owners, the yellow engine-shaped warning light on the dashboard --- officially the Check Engine Light --- is a troublesome signal. For technicians, the moment it illuminates is when the real work begins.
In this era of digital diagnostics, every secret hides inside the OBD-II port. So what exactly are those mysterious Diagnostic Trouble Codes trying to tell us?
OBD-II: The Universal Translator for Your Car
What is OBD-II?
OBD stands for On-Board Diagnostics, a monitoring system built right into your car's computer (ECU). Before 1996, every automaker ran its own incompatible diagnostic system (the OBD-I era). Then U.S. regulations mandated a unified OBD-II standard for all new cars sold domestically.
The environmental impact was significant, and major markets worldwide soon followed suit: Europe around 2000, Japan in 2003, South Korea in 2007, and China in 2008.
Think of it as installing a universal language pack and charging port (the 16-pin connector) in every vehicle, so one scan tool can read cars from anywhere.
Why Does the Check Engine Light Come On?
Commonly called the “Check Engine Light,” the MIL triggers when OBD-II detects a component fault --- say, a failing oxygen sensor or catalytic converter --- that could push emissions 1.5X above the limit, it triggers that yellow warning.
💡 Tech Tip: A steady light means a fault exists but the car is still drivable. A flashing light, however, signals severe misfire. Keep driving and you risk torching your expensive catalytic converter.

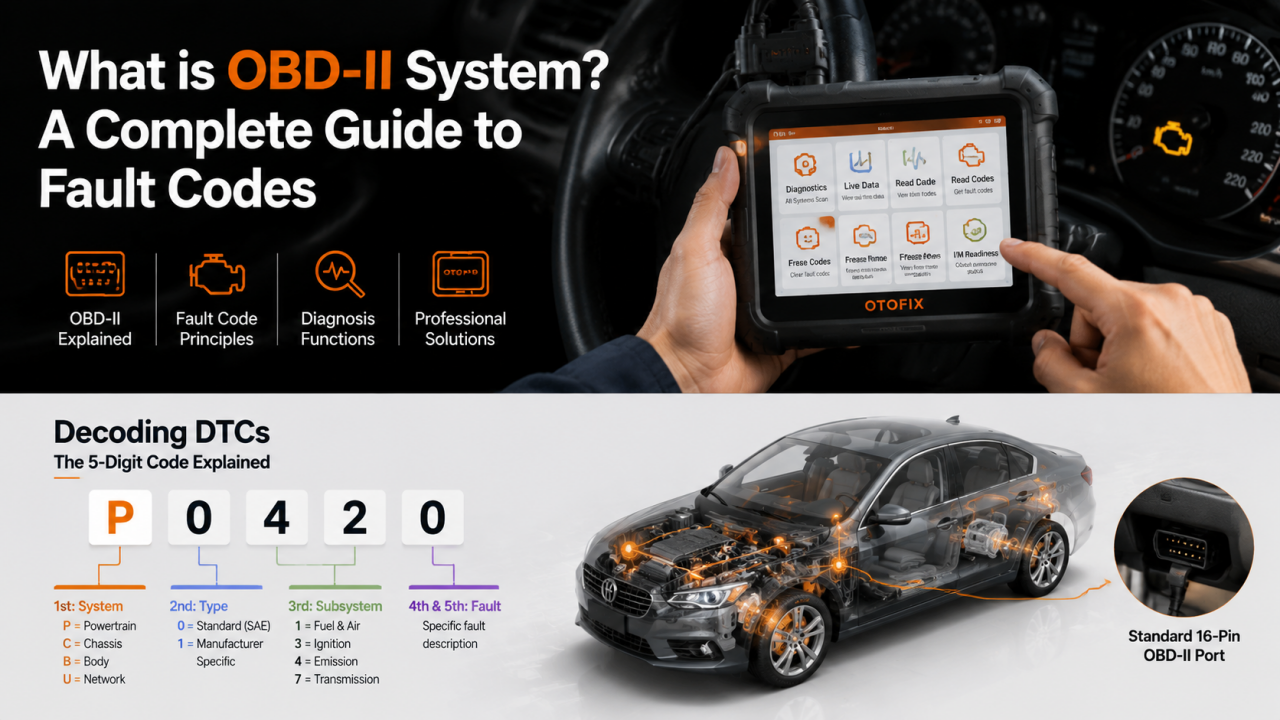

Decoding DTCs: The 5-Digit Diagnostic Code
When you plug a scan tool into the OBD-II port, codes like P0420 or U0100 appear. These aren't random --- each character follows a strict protocol.
DTC Structure Breakdown:
First Character: Letter (System Category)
-
P (Powertrain): Engine and transmission. The most common.
-
C (Chassis): Suspension, steering, brakes/ABS.
-
B (Body): Airbags, HVAC, central locking.
-
U (Network): CAN bus protocols, module-to-module communication.
Second Character: Number (Standard Type)
-
0: ISO/SAE generic code (universally defined worldwide).
-
1: Manufacturer-specific code (unique to brands like BMW or Ford).
Third Character: Number (Subsystem)
-
1: Fuel and air metering.
-
3: Ignition system (e.g., misfire).
-
4: Auxiliary emissions control (e.g., catalytic converter).
-
7: Transmission.
Fourth & Fifth Characters: Numbers (Specific Fault Description)
-
These pinpoint the exact nature of the fault --- voltage too high, circuit open, etc.
What Can an OBD-II Tool Do for You?
A good scan tool doesn't just tell you what's broken --- it helps you figure out why.
-
Read Codes: Pull current, pending, and stored fault signals.
-
Clear Codes: Turn off the warning light after the repair. But note: clearing without fixing means that light's coming back.
-
Live Data: Monitor RPM, oxygen sensor voltage, fuel trim, and more in real time. It's like running an EKG on your car.
-
Freeze Frame: Capture the exact vehicle state the moment a fault triggered—key for tracking down intermittent issues.
-
I/M Readiness: Check whether your emissions-related systems are active and reporting data before a state inspection. Not ready? You'll need a drive cycle or manufacturer guidance to activate them.
Why Do You Need a Professional Scan Tool?
A lot of car owners grab a cheap Bluetooth ELM327 adapter for a few bucks. It reads basic codes, but leaves you stranded when the real problems show up. That's exactly why the OTOFIX D1 Series has become a go-to for technicians and serious DIYers.
Recommended Tools: OTOFIX D1 Lite / D1 / D1 Max2
If you want speed, depth, and portability in one tool, the OTOFIX D1 Series (D1 Lite / D1 / D1 Max) is the go-to choice for pros and enthusiasts --- bridging the gap between cheap toys and overpriced dealership tools.
-
Full-Systems Diagnosis: Goes beyond engine codes (P-codes) to read every module: Body (B), Chassis (C), and Network (U) codes --- critical for resolving SRS airbag lights or ABS faults.
-
Bi-directional Control (Active Tests): This is the game-changer. Send commands to activate the fuel pump, test cooling fans, or open the sunroof to pinpoint whether a part failed or a circuit is broken.
The Bottom Line
The OBD-II system is a milestone in automotive evolution—it turned complex mechanical systems into readable, quantifiable data. For modern car owners and technicians, understanding what those fault codes actually mean doesn't just save you money on unnecessary repairs. It keeps you safe on the road.
So the next time that yellow light pops on, don't panic. Plug in your OTOFIX, and let your car tell you what's really going on.
